Model LM6

PDF Document: HM-3127-1

Laboratory and Small Production Hammermill
Bench and portable models available
1 to 5 HP, single phase or three phase
Reference: Serial #69194-H15395

The Kelly Duplex Model LM6 Hammermill features a 6" wide x 10-1/2" diameter rotor. The mill weighs about 150 pounds and is a compact 24" high including a 12" x 12" inlet hopper. Hammer tip speed at 1750 RPM is 1530 FPM. Hammer tip speed at 3550 RPM is 3100 FPM. Power input can range from 1 to 5 HP depending on intended application. Price as illustrated, with 1-1/2 HP single phase motor and drive: $4,990.00 F.O.B. Factory

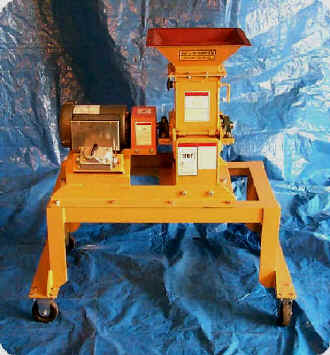

Photo at right shows LM6 Hammermill with 12” x 12” inlet hopper and 1-1/2 HP single phase direct connected motor operating at 3550 RPM. Hammermill is mounted on a portable stand which offers 16” discharge clearance.

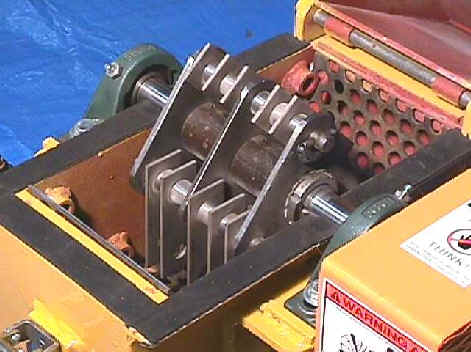

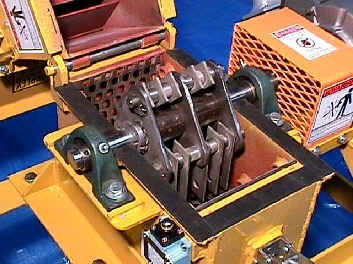

Photos above illustrate the small but heavy-duty rotor of the Model LM6 hammermill. This unit is capable of the reduction of a large variety of materials in the laboratory or in small production applications. Please contact the factory for specific application questions

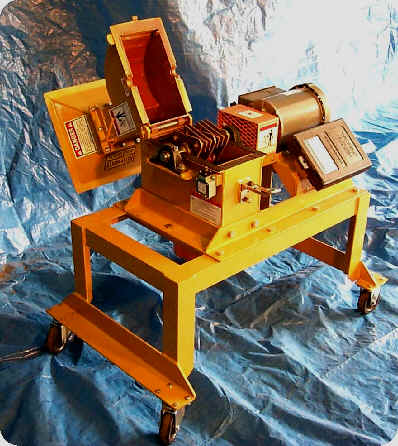

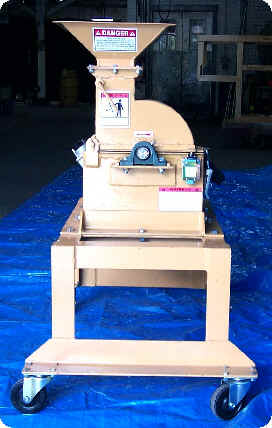

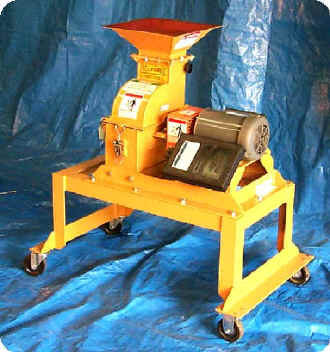

These views illustrate the compact size of the portable LM6 Hammermill and a design that provides for easy cleaning and maintenance.
