Model 131.5 (1) cubic foot mixer

PDF Document: HM-4518-1

Serial No.: 69183-H15140
February 1999

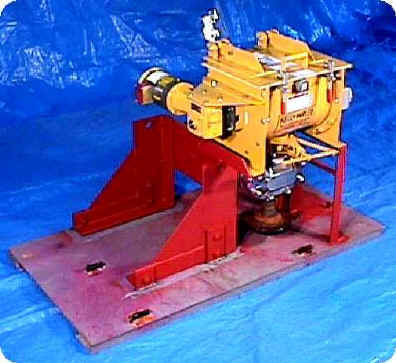

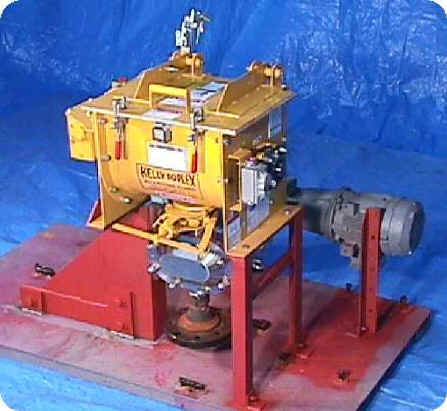

Model 131.5 paddle / plow mixer mounted to Sun Chemical pump:

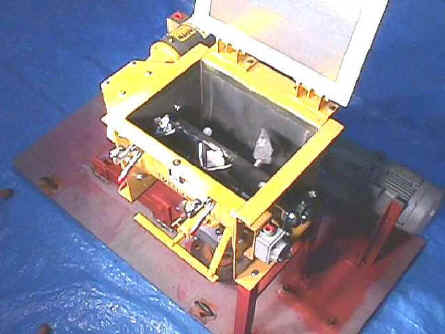

Interior view shows paddle plow agitation of entire vessel:

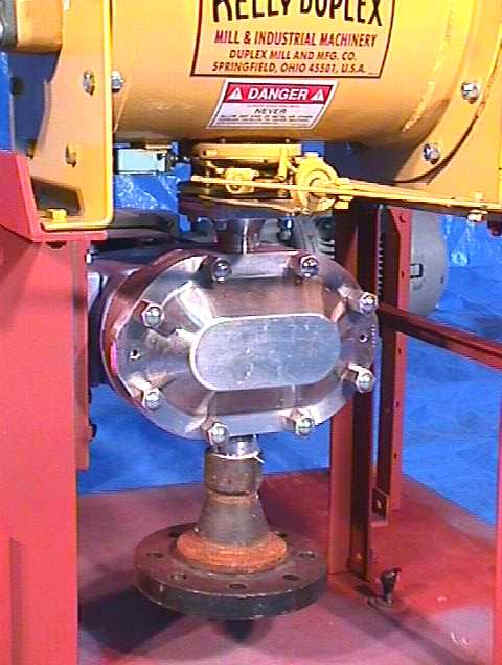

View shows connection of 2" valve to pump:

View shows modification of Sun Chemical base, pump flipped 90 degrees and mated to mixer with independent support. Base to top of mixer is approximately 40-1/4":
