Stainless Steel Mixing Ribbon Assembly

PDF Document: HM-4585-3

Double Outer Ribbon
Optional Cutter Blades
Model 6006SSR (H12224), May 1998

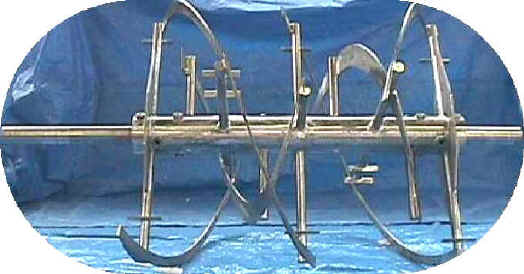

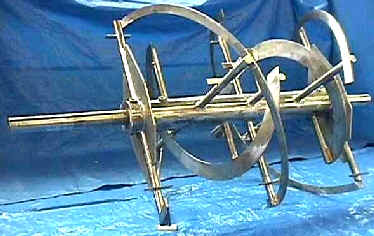

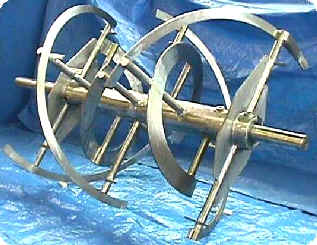

Overall views illustrate the heavy duty stainless steel double ribbon assembly with optional cutter blades installed. Assembly is 6 feet long and 5 feet in diameter with a center discharge pattern, Assembly is constructed from 8" heavy wall tubing, 2" arms and a 4" diameter T2205 high strength stainless steel drive shaft. All surfaces are polished.

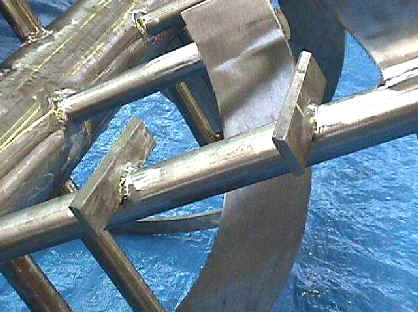

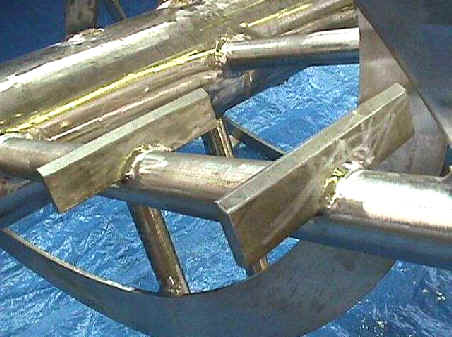

These views show the installation of optional cutters which serve to add an extra measure of agitation to the mixing action of the ribbon assembly:
