Model 110 Mix 'N Grind
Combination Hammermill/Mixer
5 HP drives; Serial #M01003

[view pdf]

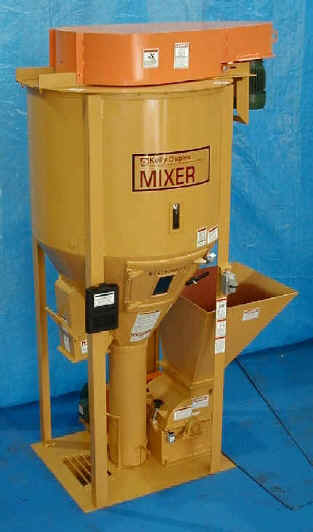

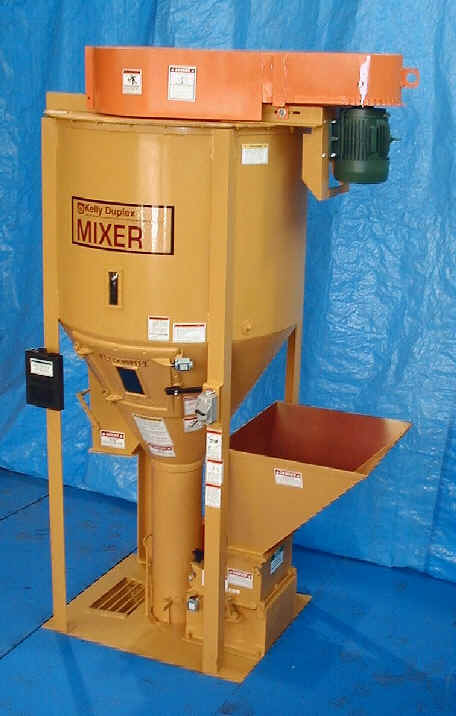

The KELLY DUPLEX Model 110 combination hammermill/mixer is suitable for grinding and mixing most free flowing materials weighing between 20 and 60 pounds per cubic foot. This combination machine is particularly suitable for grinding various grains and mixing the ground grains with additives, producing superior animal feeds in small batches. The Model 110 has a working mixing capacity of 32 cubic feet and can easily produce 1000-pound batches of most feeds. Standard equipment includes a bagger discharge at a 34" discharge height. Many other sizes and capacities of the Mix 'N Grind are available. Ask for specification and price sheet #108111Q.

Model 110 standard equipment includes:

32 CF vertical spiral mixer Motor drives and mounts Totally enclosed shields Interlocking limit switches Two mixer inlet hoppers Mixer cone hinged panel Bagging discharge Mixer sight port 15" hammermill Hammermill inlet hopper Operator's Manual Case Padlockable control switch./p>

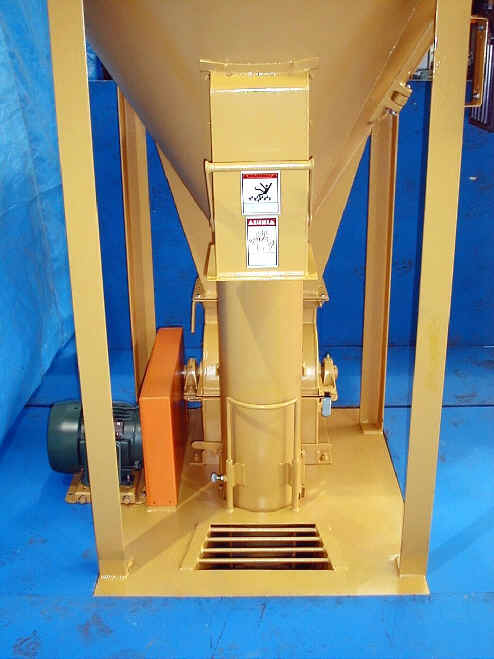

The view below shows the hammermill drive and the mixer inlet hopper at floor level for addition of feed ingredients. Also shown is the bagger discharge at 34" discharge height. Installation is simple and the floor space required is only 20 square feet. The height of the mixer above the floor is 8-1/2 feet.
